model4001047001
manufacturerProlight Opto

Prolight Power Star/O blue 1 Watt

(0)
Prolight Opto
Delivery Fri 06. Dec - Mon 09. Dec 2024  **
Case:
Max. brightness:
Viewing angle:
Forward voltage:
Current:
Wave Length:
Star-PCB with collimator
10lm
15°
3.5V
350mA
465nm

Become a business customer now and profit!



Register now for our corporate customer program and benefit from many advantages!
You can shop right here in the shop and use all online benefits.

In detail this means for you:

  • Fast automatic order processing
  • High discount
  • competitive resale prices
  • Orders from 1 piece possible
  • All available payment methods possible incl. Purchase on account (credit rating required)
  • preferred delivery and fast shipping

To benefit quickly from these advantages, please register in advance as a customer. We will change you immediately.

To the registration form

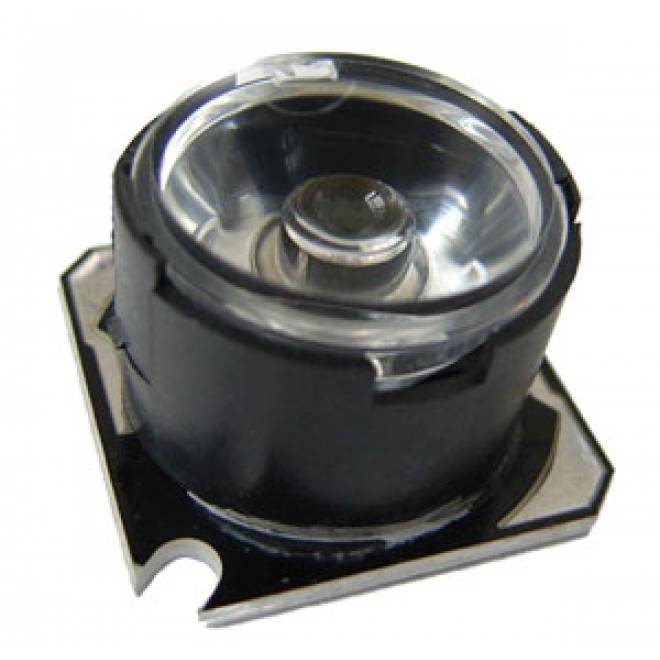

Prolight Power Star/O blue 1 Watt

These LEDs are very bright and have a large viewing angle of 15°. They will be delivered including a collimator and holder.

Note! Never look directly into the ray of light. In addition, absolutely provide for a good cooling of the LED.



Technical specifications
Package: Star-PCB with collimator, 25 x 25mm
Max. luminous intensity: 10lm
Viewing angle: 15° Wave length: 465nm
Forward voltage: 3.5V Emitting color: blue
Forward current (max): 350mA

Power dissipation: 1W
Operating temperature range: -40°C ~ 105°C
Storage temperature: -40°C ~ 105°C
Solder temperature: 260°C (5 sec.)





Recommended resistors
Supply voltage Resistor value
5V 4.7 Ohm / 1W
9V 15 Ohm / 2W
12V 27 Ohm / 3W
13,8V (Car) 15 Ohm / 10W
Series resistor is needed depends on supply voltage. If you want to supply the LED at a different voltage as listed so you can use our resistor's calculator.
Drawing / Dimensions
Prolight Power Star/O LED
